 The Rapid 1000 is one of the most robust, reliable and thermally efficient large scale incinerators on the market.

It is also one of the easiest to operate once training has been completed. Only one operator is needed throughout the whole process and this user only needs to perform minimal interaction. The hydraulically operated top loading lid is easily opened and closed whilst the plc controller can be preset with the cycle programme or entered manually if the operator has been fully trained. The rest is taken over by the Addfield machine. The hearth bar arrangement heats the waste from above and below to allow such a high burn rate and the progressive latching system ensures that there is a tight seal around the lid so there is limited thermal loss. The incinerator will maintain optimum burn temperatures throughout the cycle, which are displayed on the PLC Controller, until the end of the cycle where it reaches the automatic cool down process in preparation for de-ashing and reloading. Only about 3% of ash will be found in the chamber once the lid is opened.

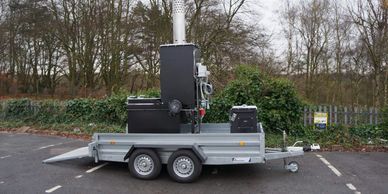

 Addfield have a huge range of Mobile incinerator configurations for trailer mounting.

Portable incinerators are vital for the disposal and safe control of contaminated animal waste, isolating the area of land infected, often a legal requirement in most countries, certainly a recommended in all.

This comprehensive solution allows users to pro-actively take necessary safety preventative measurements during pandemics whilst keeping bio-security at the forefront of the operation.

The trailer consists of:

• Rear lights.
• Standard 7 pin hook up.
• A Pantle hook drawbar.
• Independent braking system.
• Attachment for Renault or Iveco trucks.
• Fully road worthy.
• EU law compliant.
• Agricultural or commercial beds available.
• ADR 1000 litre bunded leak proof fuel tank.
• 6kva generator.

Ideal for:

• Remote field hospitals.
• Military installations.
• Disaster zone deployment.
• Culling of animals.
• Disease prevention.
• Shared facilities.It is important to take all the required precautions during an epidemic to ensure the disease is restricted to an absolute minimum.

It is also ideal for sites that are hard to access or shared between several businesses or farms (taking bio security into account).

Includes as standard:

• A twin axle.
• Drop back loader with walk on access.
• A spare wheel.
• Full rear light system.
• EU road approved.

Ideal for:

• Rough terrain.
• Guaranteed mobility.
• Inaccessible areas.
• Outbreaks.
• Poor transportation links.
• Shared facilities.

 Addfield have a huge range of Mobile incinerator configurations for trailer mounting.

Portable incinerators are vital for the disposal and safe control of contaminated animal waste, isolating the area of land infected, often a legal requirement in most countries, certainly a recommended in all.

This comprehensive solution allows users to pro-actively take necessary safety preventative measurements during pandemics whilst keeping bio-security at the forefront of the operation.

The trailer consists of:

• Rear lights.
• Standard 7 pin hook up.
• A Pantle hook drawbar.
• Independent braking system.
• Attachment for Renault or Iveco trucks.
• Fully road worthy.
• EU law compliant.
• Agricultural or commercial beds available.
• ADR 1000 litre bunded leak proof fuel tank.
• 6kva generator.

Ideal for:

• Remote field hospitals.
• Military installations.
• Disaster zone deployment.
• Culling of animals.
• Disease prevention.
• Shared facilities.

 Addfield Containerised Units are permanently housed in a modified 20ft high cube shipping container. With "a ready to go installation" and a simple process that requires only a single operator for minimal user interaction.

The container option offers the flexibility of easily transferring the incinerator to the desired location or emergency locality for immediate use, as well as being ideal for extra protection from the elements, vandalism and wildlife, the container unit has the added benefit of cover without the need for the machine to be housed inside a building.

Includes as standard:

• Installation of extraction system. Exclusive to Addfield configurations.
• Installation of chimney section with a protective weather proof membrane.
• Installation of an electrical switchboard.
• Relocation of control panel.
• Additional bracing to the structure.
• Fuel tank – inside the container behind a two steel wall.

 The 20ft heavy duty skid has a hook lift which makes it easy to lift onto a trailer or articulated vehicle, and allows it to be effortlessly taken on and off vehicles when site relocation is required.

Addfield skid mounted units are an ideal solution for desert, remote location or even war zones, any  application when a fast response is required. The skid units also include shipping / crane hooks, and are a “ready to go complete unit.”

If you have a requirement for a Skid Mounted High Capacity thermal configuration, then look no further than Addfeild.

Includes as standard:

• 20ft heavy duty skid.
• ADR 1000 litre leak proof bunded fuel tank.
• 6kva Generator.

Ideal for:

• Natural disasters.
• Culling of animals.
• Epidemics (avian flu, African swine flu etc).
